Hydraulic Piston Press Sawdust Briquette Press Machine for Wood Block Briquetting

Place of Origin : China

Brand Name : UT

Packaging Details : wooden box

Supply Ability : 30 Set/Sets per Week

Price : Negotiation

Applicable Industries : Manufacturing Plant, Energy & Mining

Showroom Location : Australia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 2 years

Core Components : Engine, Gearbox, Motor

Application : biomass fuel

Production Capacity : 99.9%

Voltage : 380V

Dimension(L*W*H) : 3500*1800*1700mm

Weight : 8000 KG

Features : mechanical stamping type

Condition : New

Warranty : one year

Product name : small cheap biomass briquette machine

Color : Blue or as your require

Capacity : 1.2-1.5T/H

max.size of raw material : 30mm

Briquette density : 1-1.4g/cm3

Particle size of raw material : sawdust, wood chips,branches,crop,etc

Usage : Make fuel briquettes and charcoal

Machinery : small cheap biomass briquette machine

use workers : 2-3 workers

After-sales Service Provided : Engineers available to service machinery overseas

Port : Qingdao port/ Ningbo port/Shanghai port

MOQ : 1

motor : 220v/380v/415v/customzied

color : customzied

key words : briquette press machine

usage : wood shavings, wood sawdust , shredded paper

Contact Now

2022 New Design 100 kg per hour Wood Block Briquetting Machine Hydraulic Piston Press Sawdust Briquette Press Machine

Product Description

Small cheap raw Materials That Are Suitable for Briquetting:

Some characteristics have to be checked for all type of raw materials prior to considering briquetting.

Hydraulic Piston Press Sawdust Briquette Press Machine for Wood Block Briquetting

Ÿ Particle size

Generally the max particle size is 20x5x3 mm in order to avoid feeding problems for the briquette press.

Ÿ Moisture content

As the optimum moisture content for briquetting purposes varies with the raw material, we know from experience that the recommended water content is from min. 6% to max. 16%.

From 16% and higher quality will deteriorate considerably until briquetting becomes hard.

Ÿ Wood waste Material

Most wood waste is suitable for briquetting depending on its content of lignin as well as the moisture content and particle size etc.

Ÿ Demolition wood

Different kinds of demolition wood are available in an increasing amount around us and it can be turned into valuable fuel briquettes for private consumers or industrial use.

Ÿ Agricultural waste

Agricultural wastes such as organic wastes typically animal wastes or dead plants, are usually not harmful to the environment; on the contrary, they can enrich the soil with nutrients and minerals.

Alternatively agricultural waste like straw and stalks etc. is also very suitable for production of briquettes.

Ÿ Paper and cardboard

Ÿ Plastic

Ÿ Others

Flow chart:

Hydraulic Piston Press Sawdust Briquette Press Machine for Wood Block Briquetting

Feartures of Mechanical stamping briquette pressing machine:

• Optional mixer for adding moisture to the raw material
• Flexible die system.
• Easy commissioning as factory tested with your raw material
• Easy to relocate.
• Sturdy design - Suitable for running 24hours.
• Easy to service and low maintenance costs

• NO binder needed during production to make clean & green fuel briquette.

• Quantity of heat of final product is 500-1000Kcal higher than raw material.

Specifications of Briquette Machine Cheap Price:

Briquette Machine Cheap Price
Capacity	1000Kg/Hour
Power	Main Engine Power: 45Kw
Power	Total Power: 61Kw
Feeding Raw Materials Size	Less than or equal to 30mm
Raw Materials Moisture Content	10-20%
Final Briquette Size	70-80mm Diameters
Density of Briquette	10.-1.2g/CM3
Briquette Moisture Content	Less than or equal to 12%
Machine Size(LWH)	3.51.71.8meters
Machine Weight	8000Kg

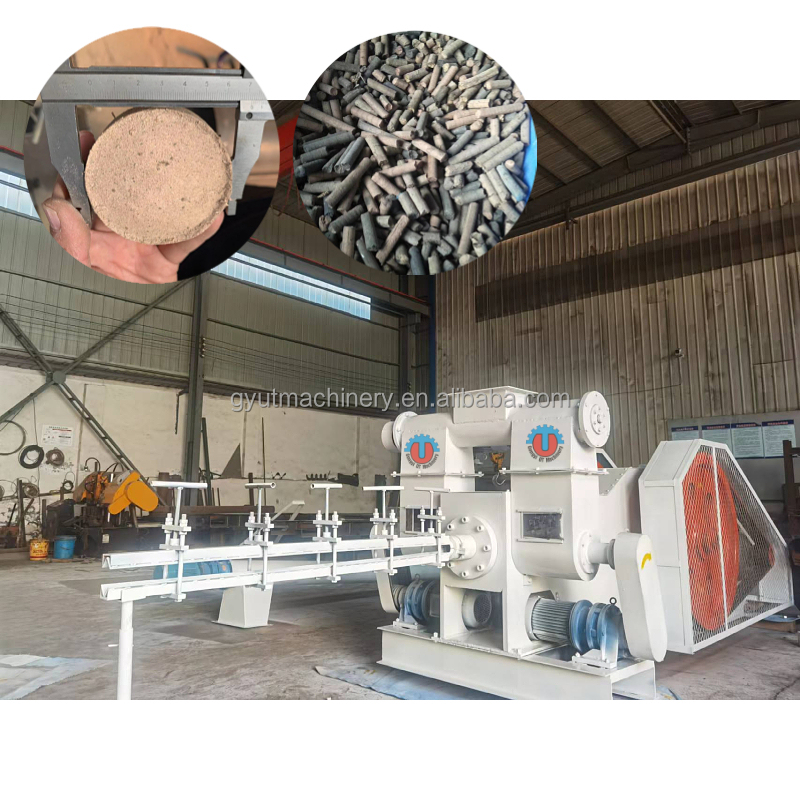

Final products of Mechanical stamping briquette pressing machine :

Hydraulic Piston Press Sawdust Briquette Press Machine for Wood Block Briquetting

FAQ

Detail Quotation Solutions for you.

(1). What capacity do your prefer?
-----The Capacity Range of Wood Briquettes Machine:500Kg/Hour;1000Kg/Hour;2000Kg/Hour.

(2).What is your raw material?
-----According to different raw material(such as hard wood, soft wood, straw, sawdust, ricehust ).
We need to make sure whether need Wood Crusher or not.
The Final Materials Size should be less than or equal to 30mm.
MC(Moisture Content) should be Less than or equal to 12%.

(3).Final Briquettes Size Demand?
-----We have different diameters of final briquettes.(Such as:50mm, 70mm, 80mm, 90mm, 100mm).
Length of Briquettes:Adjustable.

Hydraulic Piston Press Sawdust Briquette Press Machine for Wood Block Briquetting Images
