Customised Nursery Seeding Machine with Automatic Seed Planting and CE Certification

Applicable Industries : Manufacturing Plant, Farms, Home Use

Number of Rows : 5, 6, 7, 8, 9, 10, 11, 12

Showroom Location : Egypt, Turkey, Italy, Peru, Russia, Spain, Thailand, Bangladesh, South Africa, Kazakhstan, Uzbekistan, Tajikistan, Japan, None

Condition : New

Type : Automatic

Application : Tomato seed, Chili seed,

Use : Tomato seeding machine

Place of Origin : China

Brand Name : UT

Weight : 200 KG

Dimension(L*W*H) : 600*700*800mm

Warranty : 3 years

Key Selling Points : Long Service Life

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 3 years

Core Components : PLC, Engine

Function : Seeding Vegetable Seeds

Color : Customised

Usage : Seed Seeding Machine

Working efficiency : 0.55-0.7ha./day

After Warranty Service : Field maintenance and repair service

Name : Planter Seedling Machine

After-sales Service Provided : Free spare parts

Product name : Seeding Machine

Suitable for : Black Tray White Tray

tell : 008618037187350

Price : Negotiation

MOQ : 1

Packaging Details : wooden box

motor : 220v/380v/415v/customzied

color : customzied

Contact Now

Product Overview

High Efficiency Automatic Seed Planting Machine Trays Seed Planting Machine Nursery Seeding Machine With CE

Contact: Demi

Mobile/ whatsapp: 0086-18037187350

Vegetable seeder (production line) is with spreading soil, watering, seeding, fertilizing, soil covering and other functions
.Widely used in vegetables, seeds seeding. The product adopts a air suction cylinder patented technology, actualizes the precision seeding of small seeds, is the best choice for vegetable, tobacco, flowers seedling.

FEATURES AT A GLANCE

Customised Nursery Seeding Machine with Automatic Seed Planting and CE Certification

Dimensions(mm)： 1100x700x1200 Precision： >95-98% Principle：air compressor Weight： 70kg Size for seed： 0.3-12mm Capacity： 300 trays/hour

Installation and commissioning and operation process 1. Install the suction plate, remove the baffle, remove the machine head, and install the seeding plate (the screws are all screwed on) to ensure the installation is flat. 2. Connect the 220v power supply, turn the switch on, and hear the working sound of the fan. 3. Find the best matching needle based on the different seeds. A, select several kinds of suction heads (needle), insert into the suction plate (8-10) B, take a small amount of clean and impurity-free seeds (if the impurities are too much, the purity is not high, it is easy to block the suction head),test whether it can be sucked, put a small amount of seeds into a small container, turn on the machine switch, the fan works, and test the best matching needle. C, each sucker head is guaranteed to suck a seed. If it can't be sucked, the needle is small. If you suck a few, the needle is big. D, test the needle and find the best matching suction head (needle). F. After finding the appropriate seed head, according to the number of needles on the suction plate, all the forks are sucked on the head (the baffle can be removed, the machine head is removed, and the baffle is installed after completion.

4. Put the appropriate amount of seeds in the seed tray (if the seeds are larger, or the amount is more, you can directly put the seeds in the seed tray to take seeds such as: soybeans, peas, corn, watermelon, etc.) Place the matching trays in the seed tray or place them in the precision suction hole. Seeds are placed in the plugs (or precision sucking holes) so that the seeds are concentrated when sucking and easy to suck. 5. Flowers and other smaller, lesser seeds, combined with precision suction and aspiration. 6. Put a rubber sleeve on each of the suction heads (use the needle to tie the eyes), expose the needle, and the rubber sleeve will prevent the needle from being clogged and the seeds running away when the substrate is inserted. It acts as a pressure point. After the pressure is completed, after the seed is taken in the seed tray, adjust the sowing depth screw so that the seed falls in the hole of the pressure hole, and do not insert the substrate to avoid clogging the needle. 7. Place the seed tray in place, rely on the baffle (the baffle is attached to the outside of the machine), and press the head to suck the seed. 8. Move the handpiece to the left and place the handle on the substrate-mounted tray. Press the handle. 9. Open the venting port, deflate, insert the seed into the matrix or drop into the hole of the pressed hole to complete the seeding. 10. Repeat the above actions to complete the production. 11. Sprinkle the soil in the well-planted tray (after the pressure hole), if the seed is not inserted into the substrate, sprinkle water.

SALES AND SERVICE NETWORK

FAQ

Q: If the seeds are not round shape, can they be used in your seeding machine?

A: No problem, any shape of seeds can be used in our seeding machine.

Q: Can machines work at 110V or 120V voltage?

A: It can do.

Q: If we buy one set of UT Brand seeding machine line, can we use all kinds of seeds?

A: If you change seed trays or seeds(much different from previous seeds), you should change seedling drum part to fit different trays and seeds.You'd better buy additional seedling drum, and it is easy to change.

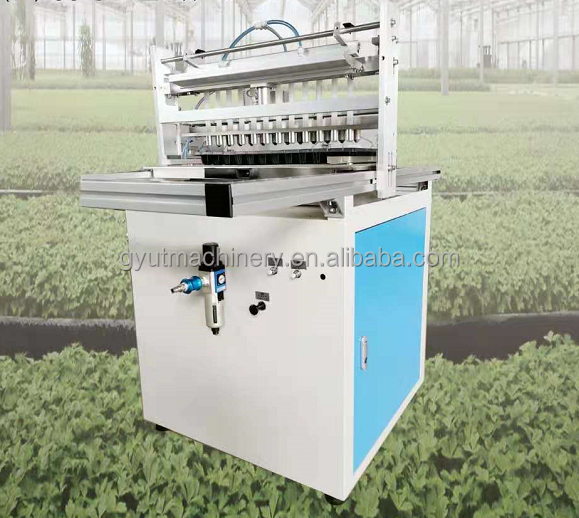

Customised Nursery Seeding Machine with Automatic Seed Planting and CE Certification Images
