Single-screw Design Electric Copper Wire Cable Machines for PVC Cable Production

Condition : New

Plastic Processed : PVC

Application : Wire

Screw Design : Single-screw

Screw Material : 38CrMoALA

Screw diameter (mm) : 80

Screw L/D Ratio : 28:1

Screw Speed (rpm) : 2981.55 rpm

Showroom Location : Egypt, Saudi Arabia, Indonesia, Spain, Kenya, Chile, UAE, Uzbekistan, Tajikistan

Place of Origin : China

Brand Name : UT

Voltage : 220/380/415V

Dimension(L*W*H) : as client request

Power (kW) : 28

Weight : 3500 KG

Warranty : 3 years

Key Selling Points : Long Service Life

Applicable Industries : Building Material Shops, Manufacturing Plant

Video outgoing-inspection : Provided

Warranty of core components : 4 years

Core Components : Pump, PLC, Pressure vessel, Engine, Screw

Machinery Test Report : Provided

name : Extrusion Machine

Automatic Grade : automatic

Power : 22kw

After-sales Service Provided : Free spare parts

After Warranty Service : Spare parts

Local Service Location : Pakistan

Product Type : cable making machine

Marketing Type : New Product 2020

Price : Negotiation

MOQ : 1

Packaging Details : wooden box

motor : 220v/380v/415v/customzied

color : customzied

Contact Now

Product Overview

pvc wire cable extrusion machine
Gongyi UT Machinery

contact:orion
whatsapp:0086-18236968979

The extruder can work with TPU, NYLON, LSHF etc. thermoplastic compound by using different design screw.

FEATURES AT A GLANCE

500 meter/minuter cable machine
1. Power: 30KW AC motor + inverter
2. Gear box: 200 Grinding gear
3. Screw: 80mm, L/D=28:1, Speed: 10-110RPM, Material: SACM-2, surface hard chrome plating after nitriding treatment, suits for the
extrusion of PVC, PE.

Single-screw Design Electric Copper Wire Cable Machines for PVC Cable Production

Right elevation

Left elevation

Front elevation

SALES AND SERVICE NETWORK

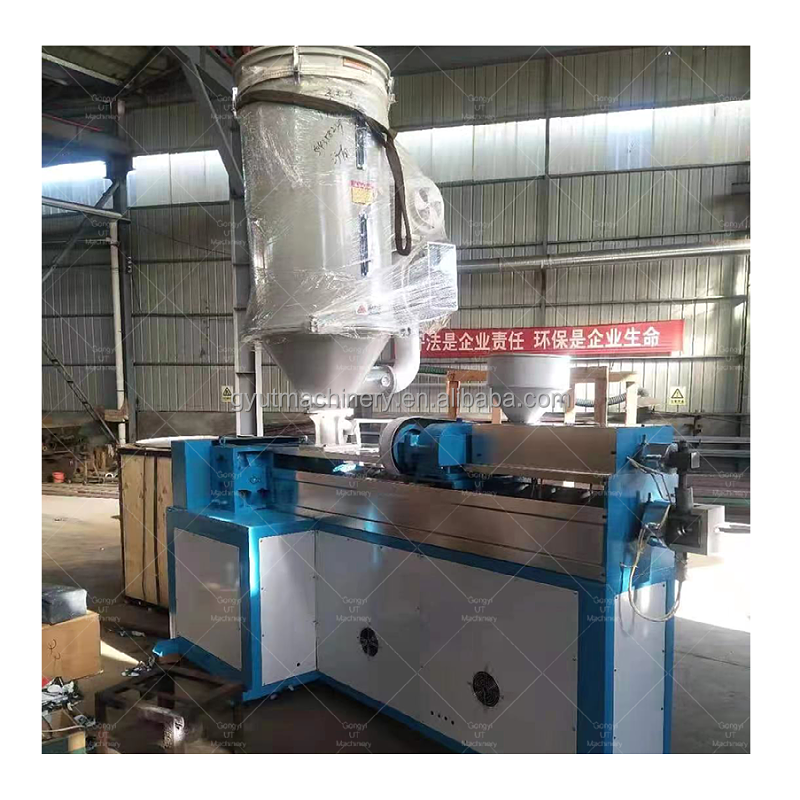

The extruder
extruder the insulation layer

Screw: 80mm,
L/D=28:1

Drying machine and the automatic feeder
Capacity:100kg,

Attached to the hot air electric dryer , barrel temperature and heating time is set.
Electric heat and power plant 4KW
Automatic feeding machine

Straightening wheel
Type: Horizontal five-wheel straightening wheel
Tension straightening: manual adjustment
The five-wheel guide wheel can be positioned in two or three directions up and down, and the relative position can be adjusted.

The capstan
Double-wheel anodic oxidation surface strengthening

Upper and lower structures or left and right structures are adopted

sale-service

Pre-sale:
1. Suggest to client suitable Bare wire diameter, final product capacity.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.

After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.

FAQ

For choosing proper machine, please read these bellow guides carefully:

1). What is the max and min size of the finish products. It is better offer the picture of sample or drawing of sample.
2). What capacity do you want? (kg/h)
3) Is there any special demand for electric parts? Siemens, Omron or domestic ?
4) What is your power standard(V, Hz)?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
